概览
RailClamp® is a low capacitance TVS array designed to protect high speed data interfaces. This series has
been specifically designed to protect sensitive components which are connected to data and transmission
lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT
(electrical fast transients).

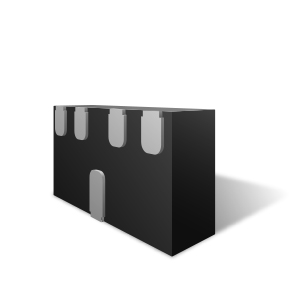

封装
- SLP1508N5T 5L
订购代码
- RClamp1644T.TNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±25kV (air), ±20kV (contact)
- IEC 61000-4-5（雷电）10A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Protects USB DP, DM, and ID Pin operating to 5V
- Protects USB VBus operating up to 12V
- Low capacitance (<0.60pF) on DP, DM, and ID Pins
- 钳位电压低
- Extremely low dynamic resistance: 0.33 Ohms (Typ) on DP, DM, and ID Pins
- Innovative flow-through design allows easy pcb layout
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP1644T Datasheet | 2018-12-15 | | |
应用
- USB 2.0
- USB OTG
- Micro USB
