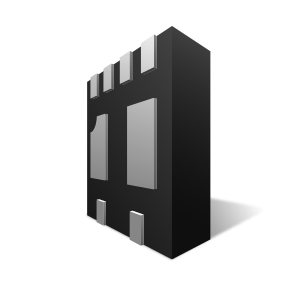

RClamp1255P
RailClamp® TVS arrays are low capacitance ESD protection devices designed to protect high speed data interfaces. The RClamp®1255P provides dedicated surge and ESD protection for USB ports. It is designed to replace multiple discrete components in portable applications.


功能
- ESD and surge protection for USB Voltage Bus to
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-5(雷电)100A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- ESD protection for USB data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±10kV (contact)
- Protects USB DP, DM, and ID Pins operating up to
- +/- 4V
- Protects USB VBUS operating up to 12V
- Low capacitance (<0.50pF) on DP, DM, and ID Pins
- 钳位电压低
- Low dynamic resistance on DP, DM, and ID Pins
- 固态硅雪崩技术
- USB 2.0
- USB OTG
- uUSB
应用
封装
- SLP2018P6 6L
订购代码
- RClamp1255P.TGT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP1255P
产品描述
LOW CAPACITANCE RCLAMP SURGE PROTECTION FOR USB INTERFACES
引脚数
6
封装类型
SLP2018P6
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
镍钯金
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
