RClamp0594P
RailClamp® TVS arrays are ultra low capacitance electrostatic discharge (ESD) protection devices designed to protect high-speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD, cable discharge events (CDE) and electrical fast transients (EFT).
功能
- Transient protection to:
- IEC 61000-4-2 (ESD) ±17 kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (lightning) 6A (8/20µs)
- 保护四条高速数据线路
- Package design optimized for high-speed lines
- Working voltage: 5V
- 钳位电压低
- Low capacitance: 0.3 pF typical (I/O to I/O)
- 固态硅雪崩技术
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- HDMI 2.0
- Embedded display port (eDP)
- Display port
- LVDS
- V-by-one
应用
封装

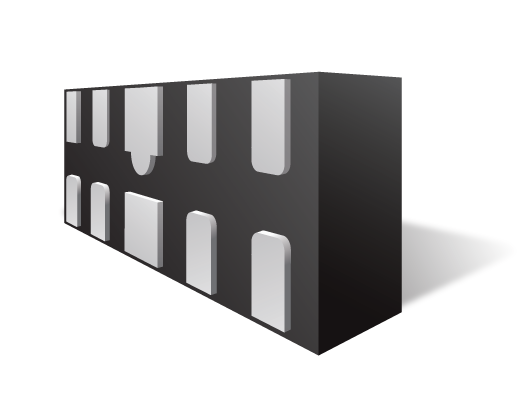

- DFN 2.5 x 1.0 x 0.55mm 10-Lead - 5,000 pcs.
订购代码
- RClamp0594P.TAT
Pb(Lead)-Free/RoHS-Green Info
Datasheets & Documentation
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
