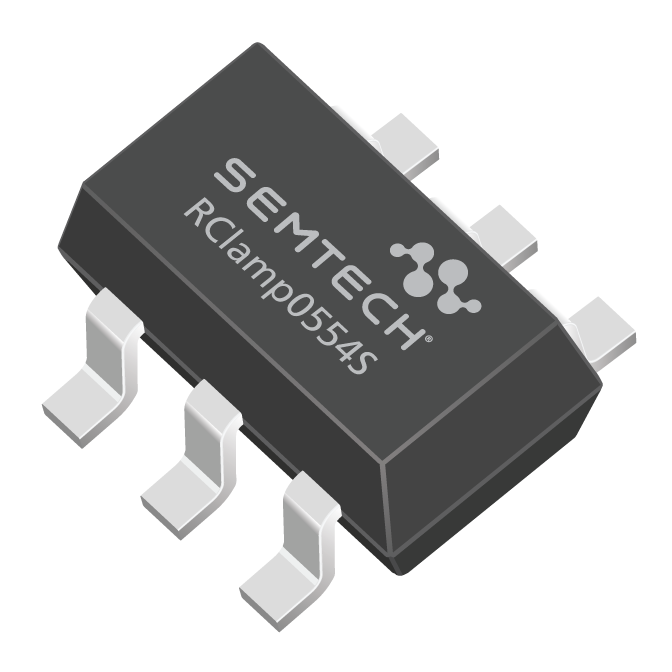

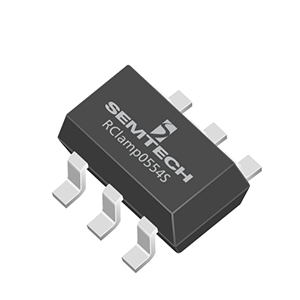

RClamp0554S
A RailClamp® is a low capacitance TVS array designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge
(ESD), electrical fast transients (EFT), and lightning.
功能
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 25A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects four I/O lines and Voltage Bus
- Low capacitance: 5pF (VR=0V)
- 钳位电压低
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- USB 2.0 Power and Data Line Protection
- Video Graphics Cards
- Monitors and Flat Panel Displays
- Digital Video Interface (DVI)
- Notebook Computers
- IEEE 1394 Firewire Ports
应用
封装
- JEDEC SOT-23 6L
订购代码
- RClamp0554S.TCT
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | 国家/地区 | Qty | Buy | 经销商 |
|---|
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
