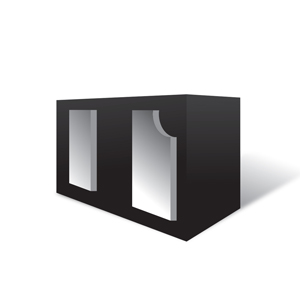

RClamp0551P
The RailClamp0551P is a 5V, low capacitance, single-line transient voltage suppressor (TVS) optimized for protecting high-speed data interfaces from electrostatic discharge (ESD), cable discharge events (CDE) and electrical fast transients (EFT). The RClamp0551P presents a typical capacitance of 0.5pF and provides ±17kV contact and ±17kV air discharge to the IEC61000-4-2 ESD standard.
Pb(Lead)-Free/RoHS-Green Info
Datasheets & Documentation
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
