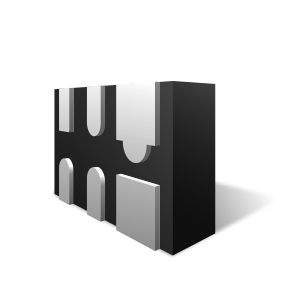

概览
RailClamp® TVS diode arrays are specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects up to 6-Lines operating at 5V
- Low capacitance: 0.25pF typical (I/O to I/O)
- 频率在 3.0 GHz 以下时，无插入损耗
- 小漏电流
- 钳位电压低
- Innovative package for easy pcb layout
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0542T 数据表 | 2018-12-15 | | |
应用
- 10GBASE-T 以太网
- 10/100/1000 Ethernet
- SATA
- USB 3.0
- HDMI 1.4
