RClamp0524T
RailClamps® series consists of ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects two or four I/O lines
- Low capacitance: 0.3pF typical (I/O to I/O)
- 钳位电压低
- Low operating voltage: 5V
- 固态硅雪崩技术
- 高清多媒体接口 (HDMI)
- 数字视频接口 (DVI)
- DisplayPortTM Interface
- MDDI Ports
- PCI Express
- eSATA 接口
应用
封装

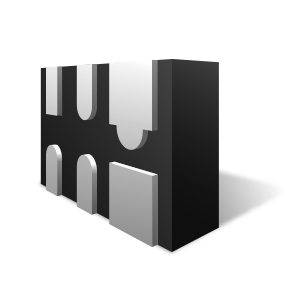

- SLP2510P8T 10-pin package (2.5 x 1.0 x 0.40mm)
订购代码
- RClamp0524T.TCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | 国家/地区 | Qty | Buy | 经销商 |
|---|
