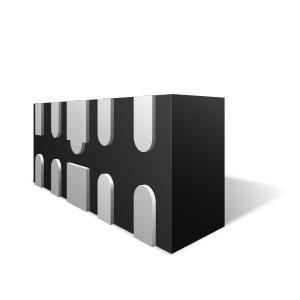

RClamp0524PA
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±17kV（空气），±12kV（接触）
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects two or four I/O lines
- Low capacitance: 0.3pF typical (I/O to I/O)
- 钳位电压低
- Low operating voltage: 5V
- 固态硅雪崩技术
- 无铅、无卤素、符合 RoHS/WEEE 标准
- 高清多媒体接口 (HDMI)
- 数字视频接口 (DVI)
- DisplayPortTM 接口
- MDDI Ports
- PCI Express
- eSATA 接口
应用
封装

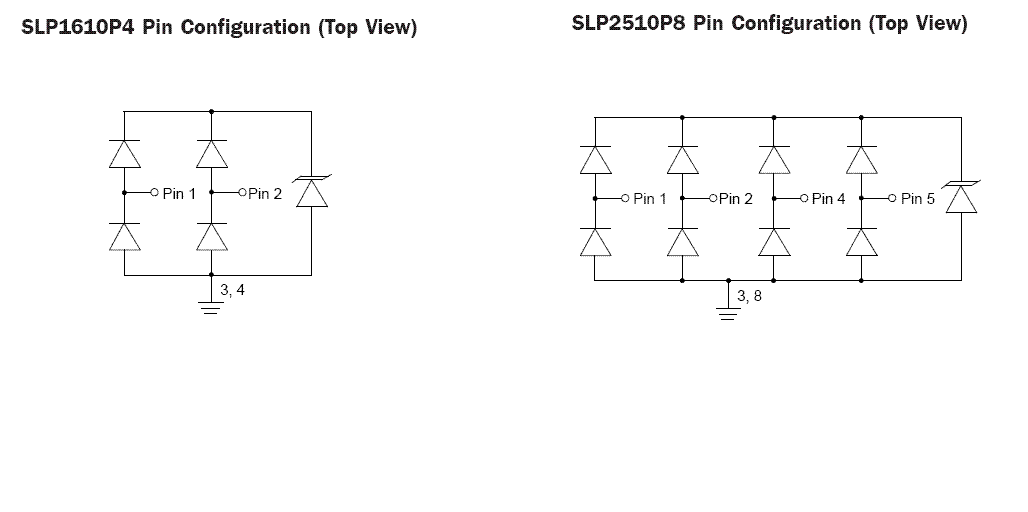

- SLP1610P4 6 引脚封装 (1.6 x 1.0 x 0.58mm)
- SLP2510P8 10 引脚封装 (2.5 x 1.0 x 0.58mm)
- 3000 pcs, Tape and Reel
订购代码
- RClamp0522PATCT
- RClamp0524PATCT
Pb(Lead)-Free/RoHS-Green Info
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | 国家/地区 | Qty | Buy | 经销商 |
|---|
