概览
RailClamp® are ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
封装

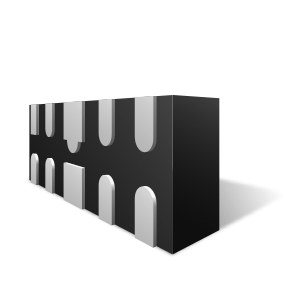

- SLP2710P8
订购代码
- RClamp0524J.TCT: Lead-free package, fully WEEE and RoHS compliant, tape and reel only.
PB Free/ROHS
Learn More →功能
- ESD protection for high-speed data lines to: IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact), IEC 61000-4-5 (Lightning) 5A (8/20μs), IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects four I/O lines
- Low capacitance: 0.3pF typical (I/O to I/O)
- 钳位电压低
- Low operating voltage: 5V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0524J Datasheet | 2018-12-14 | | |
应用
- 高清多媒体接口 (HDMI)
- 数字视频接口 (DVI)
- DisplayPort™ Interface
- MDDI Ports
- LVDS
- Serial ATA
- PCI Express
