概览
RailClamps® series consists of ultra low capacitance TVS arrays designed to protect high speed data interfaces.This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
封装

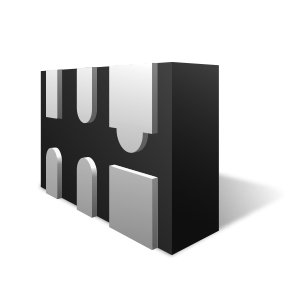

- SLP1610P4T 6-pin package (1.6 x 1.0 x 0.40mm)
- SLP2510P8T 10-pin package (2.5 x 1.0 x 0.40mm)
订购代码
- RClamp0522T.TCT
- RClamp0524T.TCT
PB Free/ROHS
Learn More →功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects two or four I/O lines
- Low capacitance: 0.3pF typical (I/O to I/O)
- 钳位电压低
- Low operating voltage: 5V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0522T Datasheet | 2019-06-14 | | |
应用
- 高清多媒体接口 (HDMI)
- 数字视频接口 (DVI)
- DisplayPort™ Interface
- MDDI Ports
- PCI Express
- eSATA 接口
