概览

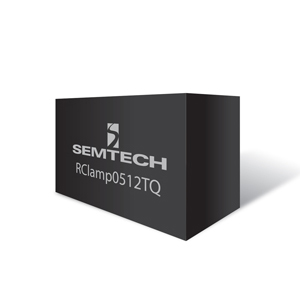

RClamp0512TQ 专用于在高速数据端口上提供二次浪涌和 ESD 防护。RClamp0512TQ 将低电容、浪涌额定转向二极管与大功率瞬态电压抑制器 (TVS) 集成在一起。TVS 采用折回（snap-back）技术将器件钳位电压降至最低，并具有 20A (tp=8/20us) 的高浪涌电流能力，在线对地配置中典型值仅为 2pF。
封装
- SGP1006N3T：1.0 x 0.6 x 0.4mm
订购代码
- RClamp0512TQTNT：无铅、无卤素且符合 RoHS/WEEE 标准，10,000 颗。
- RClamp0512TQTCT：无铅、无卤素且符合 RoHS/WEEE 标准，3,000 颗。
PB Free/ROHS
Learn More →功能
- Transient Protection to
- IEC 61000-4-2 (ESD) 30kV（空气），30kV（接触）
- IEC 61000-4-4 (EFT) 4 kV (5/50ns)
- IEC 61000-4-5 (Lightning) 20A (8/20μs)
- ISO-10605:2023 (ESD) 30kV (Air), 30kV (Contact)
- Qualified to AEC-Q100, Grade 1
- 占用较小 PCB 空间：0.6mm2
- 保护两条高速数据线路
- 工作电压：5V
- 低电容：最大 3pF
- 动态电阻：0.075 欧姆（典型值）
- Solid-State Silicon-Avalanche Technology
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0512TQ 数据表 | 2022-04-07 | | |
应用
- 汽车应用
- Industrial Equipment
- 集成磁性元件/RJ-45 连接器
- 10/100/1000 Ethernet
- 2.5GbE
- USB 2.0
