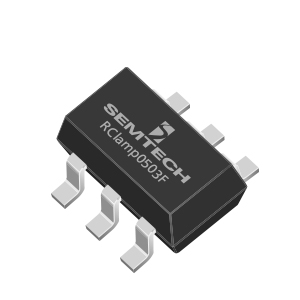

RClamp0503F
RailClamps are surge rated diode arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV(空气),±8kV(接触)
- IEC 61000-4-4 (EFT) 40A (5/50ns)

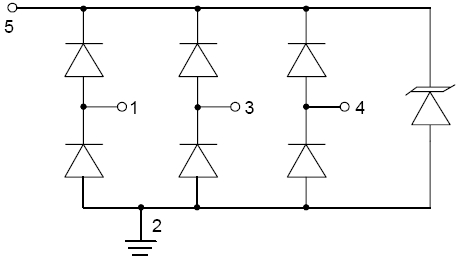

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects three I/O lines & power line
- Low capacitance (<3pF) for high-speed interfaces
- 钳位电压低
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- USB OTG interfaces
- SIM Ports
- 显卡
- 个人数码助理 (PDA)
- Monitors and Flat Panel Displays
- Portable Electronics
- Microcontroller Input Protection
应用
封装

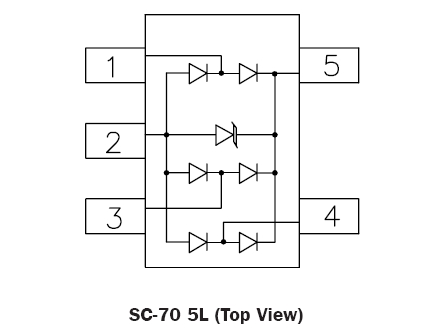

- SC-70 5L
- 3000 pcs. Tape & Reel
订购代码
- RClamp0503F.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP0503F
产品描述
RAILCLAMP 3-LINE 5V 3K
引脚数
4
封装类型
SOT-523
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
声明和报告
IPC-1752-2
