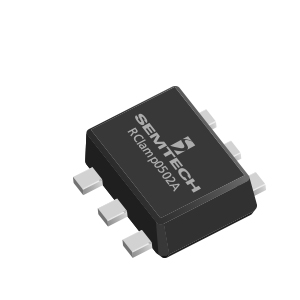

RClamp0502A
The RailClamp® series consists of ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
功能
- Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)
- Flow through design for ease of layout for high speed data line application

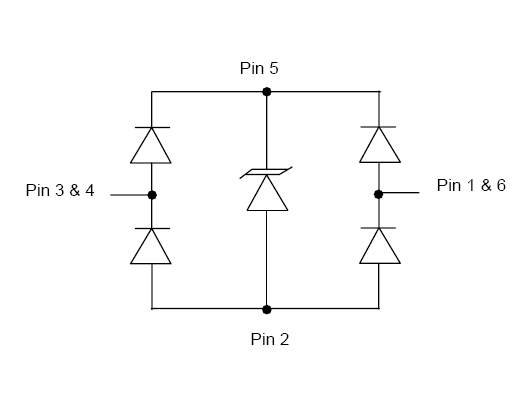

- Protects up to two I/O lines & power line
- Low capacitance (<0.9pF) for high-speed interfaces
- Ultra-small package requires less than 2.9mm² of PCB area
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- USB 2.0 High Speed
- 10/100/1000 Ethernet Ports
- High-Definition Multimedia Interface (HDMI)
- 数字视频接口 (DVI)
- Monitors and Flat Panel Displays
- 显卡
- IEEE 1394 Firewire Ports High Speed
应用
封装

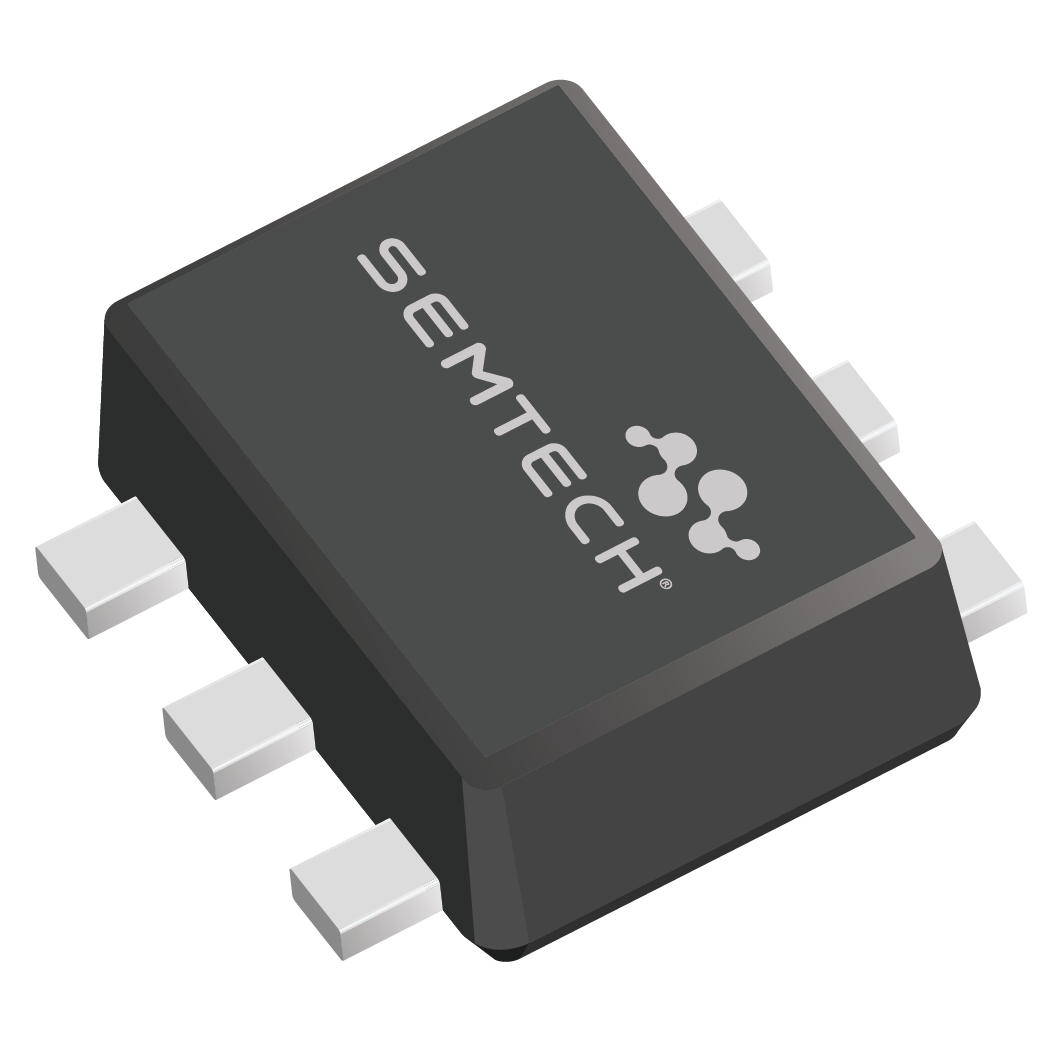

- SC-89
- 3000 pcs. Tape & Reel
订购代码
- RClamp0502A.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP0502A
产品描述
RAILCLAMP 2-LINE 5V 3K

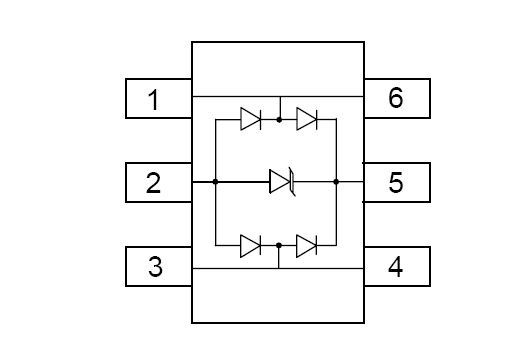

引脚数
6
封装类型
SOT-666
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
