RClamp03354P
RailClamp®03354P 为高速数据接口提供静电放电 (ESD) 防护,其符合 IEC 61000-4-2 标准,最大 ESD 耐受电压为 ±12kV 接触和 ±15kV 空气放电。RClamp03354P 专门用于最大限度地减少动态电阻和 TLP 钳位电压。每条线对地的最大电容为 0.3pF,因此 RClamp03354P 可用于工作频率超过 10GHz 的应用,而不会出现信号衰减。每个器件最多可以保护四条线路(两个高速线对)。
功能
- Transient protection to IEC 61000-4-2 (ESD) 15kV (air), 12kV (contact) - IEC 61000-4-5 (lightning) 10A (tp = 8/20μs)
- Package design optimized for high speed layout
- Protects four high-speed data lines
- Working voltage: ±3.3V
- Low capacitance: 0.3pF maximum
- Dynamic resistance: 0.13Ω
- 固态硅雪崩技术
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- USB 3.2 Gen 1/Gen 2
- HDMI 1.4、HDMI 1.4 b 和 HDMI 2.0
- 显示器端口
- LVDS interfaces
应用
封装

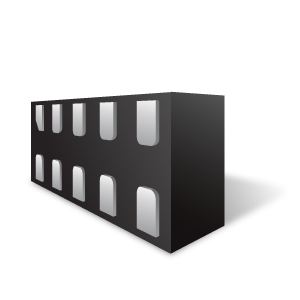

- DFN 2.50x1.00x0.55mm 10-Lead – 5,000 pcs
订购代码
- RClamp03354P.A
