概览
RClamp®01211ZC is an ultra low capacitance FemtoClamp™ electrostatic discharge (ESD) protection device specifically designed to protect high-speed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
RClamp01211ZC 具有出色的 ESD 保护特性，其特点是低峰值 ESD 钳位电压和符合 IEC 61000-4-2（±10kV 接触）的高 ESD 耐压。RClamp01211ZC 最大电容仅为 0.2pF，插入损耗极低，可用于 Thunderbolt 3、USB4 等高速线路。

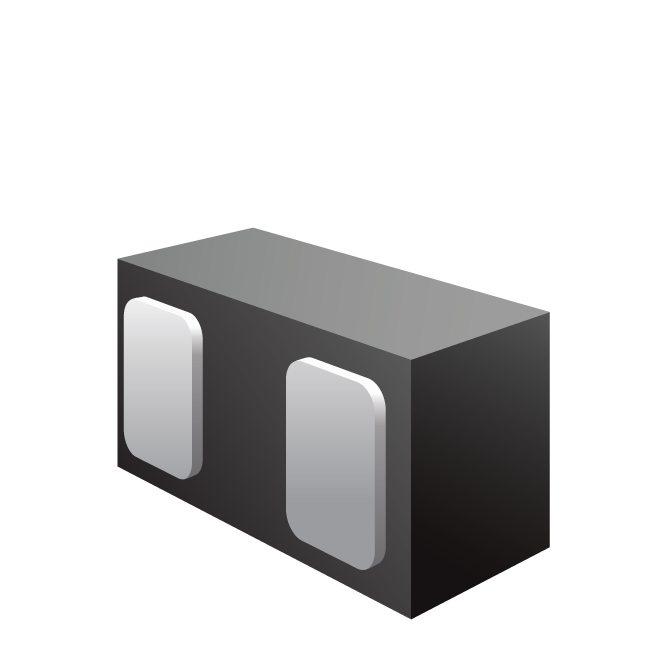

封装
- DFN 0.60x0.30x0.25mm – 2 引脚
订购代码
- RClamp01211ZCFT：无铅、无卤素且符合 RoHS/WEEE 标准，15,000 颗。
- RClamp01211ZCNT: Pb-free, Halogen-free, RoHS/WEEE-compliant, 10,000 pcs.
PB Free/ROHS
Learn More →功能
- ESD 耐受电压为 IEC 61000-4-2 (ESD) ±10kV（接触）
- 低 ESD 钳位
- 超低电容：最大 0.2pF
- Protects one high-speed data line
- 工作电压：1.2V
- 反向泄漏电流小：VR=1.2V 时最大 100nA
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RClamp01211ZC 数据表 | 2023-10-10 | | |
应用
- Thunderbolt 3
- USB4
- USB 3.2 第 1 代/第 2 代/第 2x2 代
