Pb(Lead)-Free/RoHS-Green Info

Base Part Number (1)
LCDA05
Lead Free Part Number (1A), (13)
LCDA05.TBT
产品描述

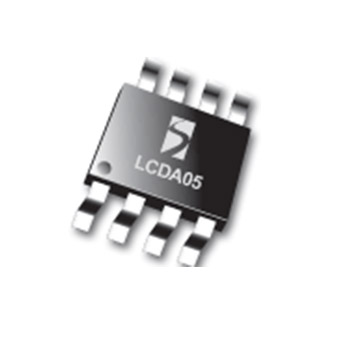

5V, 300W, LOW CAPACITANCE TVS DIODE ARRAY FOR HIGH-SPEED DATA INTERFACES
引脚数
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
REACH SVH C(233) EC1907/2006 (18)
JIG 101 A & B (12)
是
RoHS / RoHS 2 2011/65/EC (4) (5)
RoHS 2/3 Amend 2015/863 (7)
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
Halogen Free / Low IEC 61249-2-21/JS709C (20)
Proposition 65 (21)
Packaging Material 94/62/EC (17)
RoHS Compliant by Exception (8)
否
Green Reportable Substance (9) Antimony (Sb)/ Berylliuum (Be)
Phosphorus (P) & (Red P)
Compliant (ND4) or below threshold PPM (7)
ND4
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
声明和报告
IPC-1752-2
