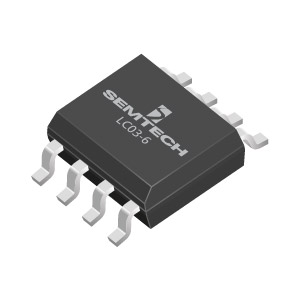

LC03-6
The LC03-6 transient voltage suppressor is designed to protect components which are connected to high speed telecommunication lines from voltage surges caused by lightning, electrostatic discharge (ESD), cable discharge events (CDE), and electrical fast transients (EFT).
功能
- 2000 watts peak pulse power (tp = 8/20 µs)
- Transient protection for high-speed data lines to
- Telcordia (Bellcore) 1089 (Intra-Building) 100 A (2/10 µs)
- ITU K.20 IPP = 40 A (5/310 µs)
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 100 A (8/20 µs)

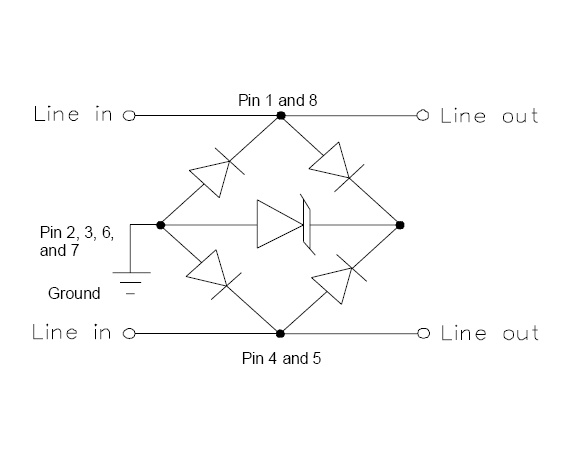

- Protects two lines in common and differential mode
- Low capacitance for high-speed interfaces
- Low clamping and operating voltage
- Integrated structure saves board space and increases reliability
- 固态硅雪崩技术
- T1/E1 line cards
- T3/E3 and DS3 interfaces
- STS-1 interfaces
- ISDN S/T-interfaces
- ISDN U-interfaces
- 10/100 以太网
应用
封装

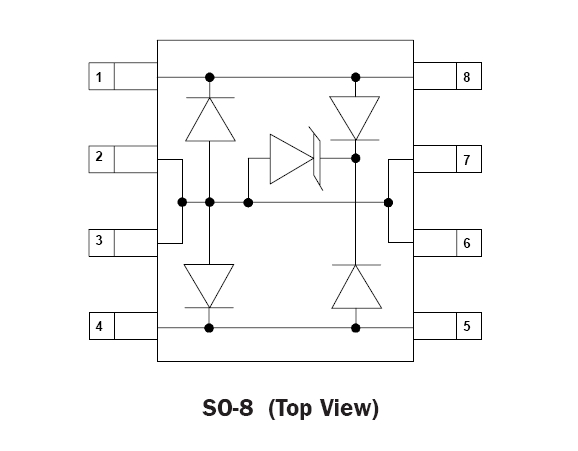

- SO-8
订购代码
- LC03-6.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
LC03-6
产品描述
LOW CAPACITANCE SURFACE MOUNT TVS FOR HIGH SPEED DATA INTERFACE
引脚数
8
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
