概览

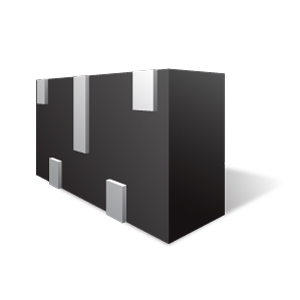

TClamp®3602P 为工业应用中的 RS-485 以及其他 24V 和 36V 线路提供专用浪涌和 ESD 防护。此器件具有 30A (tp=8/20μs) 的高浪涌电流能力和低钳位电压，非常适合在恶劣的瞬态环境中使用。
功能
- Transient Protection to
- IEC 61000-4-2 (ESD) ±30kV（空气），±30kV（接触）
- IEC 61000-4-4 (EFT) 4 kV (5/50ns)
- IEC 61000-4-5（雷电）30A (8/20μs)
- 保护最多两条线路
- 低电容：最大 4pF
- 工作电压：36V
- 小漏电流
- 无铅、无卤素、符合 RoHS/WEEE 标准
| 文档 | Release Date | Type |  |
|---|---|---|---|
| TCLAMP3602P 数据表 | 2022-10-12 | | |
应用
- RS-485 浪涌保护
- RS-422 浪涌保护
- 工业自动化
- 远程抄表
- 数字监控摄像头
- CAN 总线
