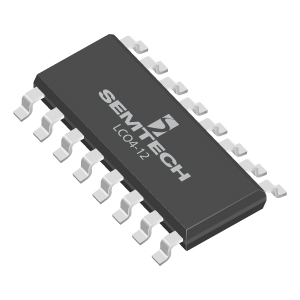

LC04-12
The LC04-12 has been specifically designed to protect sensitive components which are connected to highspeed telecommunications lines from over voltages caused by lightning, electrostatic discharge (ESD), cable discharge event (CDE), and electrical fast transients (EFT).
功能
- Transient protection for high-speed data lines to
- Bellcore GR 1089 IPP=100A (2/10μs)
- ITU K.20 IPP=100A (5/310μs)
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) IPP=100A (8/20μs)
- Protects two tip and ring line pairs
- Low capacitance for high-speed interfaces
- High surge capability
- 钳位电压低
- Solid-state silicon avalanche technology
- ADSL/HDSL
- RS-232 and RS-423
- V.90
- WAN/LAN Equipment
- Cable Modems
应用
封装
- JEDEC SO-16
订购代码
- LC04-12.TB - SnPb , reel
- LC04-12.TBT - Pb free, reel
- LC04-12 - SnPb, tube
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
