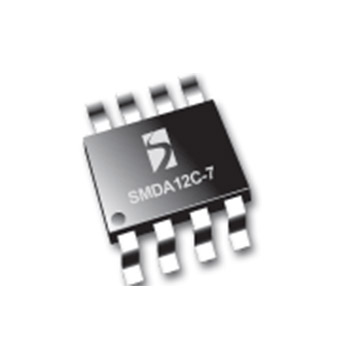

SMDA12C-7
The SMDAxxC-7 series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
功能
- Protects 7 I/O lines
- Working voltage: 12 V
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)
- 小漏电流
- Low operating voltage
- 钳位电压低
- 固态硅雪崩技术
- Small SO-8 surface-mount package
- Lead-free, RoHS and WEEE compliant
- RS-232 data lines
- RS-422 data lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- 外围设备
- Set-top boxes
- Serial and parallel ports
应用
封装
- SO-8
- 500 pcs. Tape & Reel
订购代码
- SMDA12C-7.TBT
Datasheets & Documentation
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
