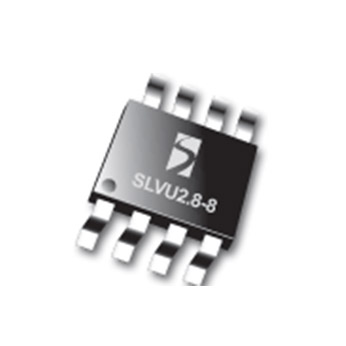

SLVU2.8-8
The SLV series of transient voltage suppressors are designed to protect low voltage, state-of-the-art CMOS semiconductors from transients caused by electrostatic discharge (ESD), cable discharge events (CDE), lightning and other induced voltage surges.
功能
- 600 Watts peak pulse power (tp = 8/20 µs)
- Transient protection for high speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50 ns)
- IEC 61000-4-5 (Lightning) 24 A (tp = 8/20 µs)
- Protects four line pairs (eight lines)
- Comprehensive pin out for easy board layout
- 低电容
- High peak pulse current (30 A, 8/20 µs)
- 小漏电流
- Low operating and clamping voltages
- Solid-state EPD TVS process technology
- Lead-free, RoHS and WEEE compliant
- 10/100 以太网
- WAN/LAN equipment
- Switching systems
- DSLAMs
- Desktops, servers, & notebooks
- Instrumentation
- Base stations
- Analog inputs
应用
封装
- SO-8
- 500 pcs. Tape & Reel
订购代码
- SLVU2.8-8.TBT
