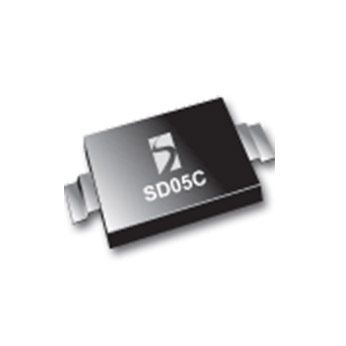

SD05C
The SDxx family of transient voltage suppressor (TVS) diodes is a series pioneered by Semtech for general purpose circuit level electrostatic discharge (ESD), cable discharge (CDE), electrical fast transient (EFT) and lightning surge protection. These robust protection devices offer multiple working voltage options and provide superior electrical characteristics such as lower clamping voltage and no device degradation when compared to polymer and MLV devices.
功能
- 5 V working voltage
- 保护一条 I/O 或电源线路
- 350 Watts peak pulse power (tP = 8/20 µs)
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 24 A (8/20 µs)
- Small package for use in portable electronics
- Suitable replacement for MLVs in ESD protection applications
- 钳位电压低
- 小漏电流
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- Cell phone handsets and accessories
- Microprocessor-based equipment
- Personal digital assistants (PDAs)
- Notebooks, desktops, and servers
- Portable intrumentation
- Pagers
应用
封装
- SOD-323
- 3000 pcs. Tape & Reel
订购代码
- SD05C.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
