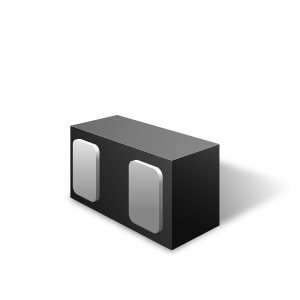

RClamp3521ZA
RailClamp® TVS 二极管专用于为高速端口提供 ESD 和 EOS 防护。RClamp3521ZA 是一款单线双向器件，典型电容仅为 0.45pF，工作电压为 3.5V。它以 Semtech 的折回专利技术制造而成，可最大限度地降低 ESD 峰值钳位和 TLP 钳位电压。动态电阻极低（典型值为 0.12 欧姆），可为灵敏电路提供最佳保护。
功能
- 高 ESD 耐受电压：符合 IEC 61000-4-2 标准，+/-20kV（接触）
- Ultra-small package
- 保护一条线路
- 低 ESD 钳位电压
- 工作电压：3.5V
- Low capacitance: 0.45 pF Typical
- 小漏电流
- 低动态电阻
- 固态硅雪崩技术
- USB 3.0/USB 3.1
- USB Type-C
- V-By-One
- MHL / MDDI
- LVDS Interfaces
应用
封装
- SLP0603P2X3F 封装
- Pb-Free, Halogen Free, RoHS/WEEE compliant
- 标称尺寸：0.6 x 0.3 x 0.25 mm
- Packaging: Tape and Reel
订购代码
- RClamp3521ZATFT
- Qty: 15,000
- 卷带大小：7 英寸
- RClamp3521ZATNT
- Qty: 10,000
- 卷带大小：7 英寸
Pb(Lead)-Free/RoHS-Green Info
