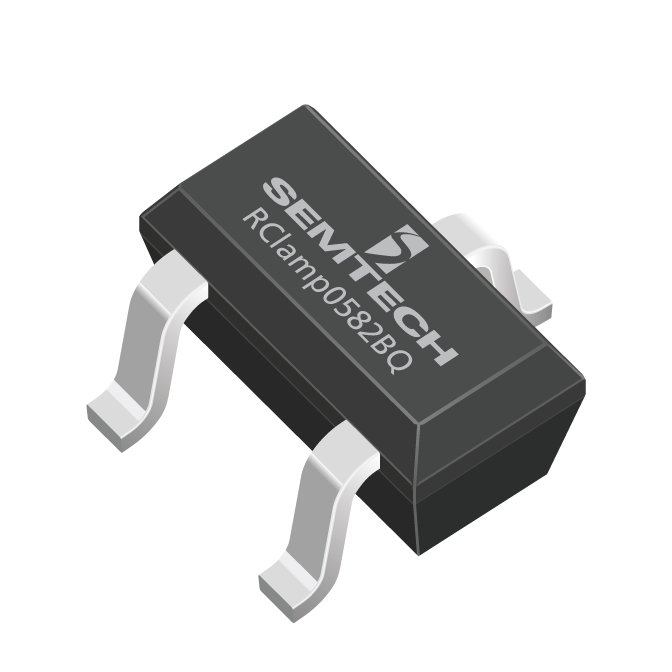

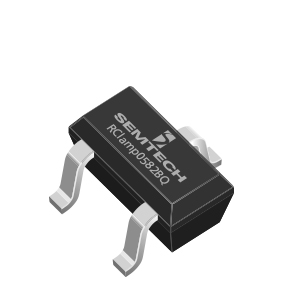

RClamp0582BQ
RailClamp0582BQ 是一款 5V、双线、低电容汽车级 RailClamp 瞬态电压抑制器 (TVS)，已经过优化，可保护以太网和 USB 等高速数据端口免受静电放电 (ESD) 威胁。RClamp0582BQ 具备低电容和高 ESD 稳健性，是保护汽车数据线免受恶劣 ESD 尖峰影响的理想器件。
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±30kV (air), ±25kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- 经 AEC-Q100 2 级认证
- Protects up to two I/O lines
- 低电容 (< 0.8 pF)
- 高浪涌能力：15A (tp=8/20us)
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- 无铅、无卤素、符合 RoHS/WEEE 标准
- USB 2.0
- 视频线
- LVDS Lines
应用
封装
- SC-75 (SOT-523) 封装
订购代码
- RClamp0582BQ.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
