RClamp0504PA
RailClamp® TVS 二极管专为保护连接到高速数据和传输线的敏感元件而设计，以防止 ESD（静电放电）、CDE（电缆放电事件）和 EFT（电气快速瞬变）导致的过电压。
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package (1.6 x 1.6mm) saves board space
- Protects up to four I/O lines & power line
- Low capacitance (<3pF) for high-speed interfaces
- No insertion loss to 2.0GHz
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- USB 2.0 and USB OTG
- Multi Media Card (MMC) Interfaces
- SD Card Interfaces
- MDDI Ports
- SIM Ports
- Key Pads
- 千兆位以太网
应用
封装

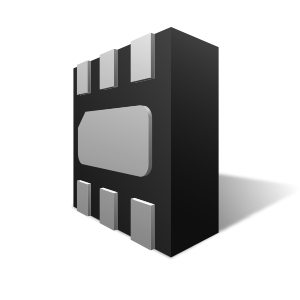

- SLP1616P6
订购代码
- RClamp0504PATCT - 3000 pcs, Tape and Reel
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | 国家/地区 | Qty | Buy | 经销商 |
|---|
Search Pb(Lead)-Free/RoHS-Green Search
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
