概览
μClamp® series of TVS diodes are designed to protect sensitive electronics from damage or latch-up due to EOS, lightning, CDE and ESD. They feature large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.功能
- Transient protection for VBus and data lines to:
- IEC 61000-4-2 (ESD): 20kV (contact), 20kV (air)
- IEC 61000-4-5 (Lightning): 20A (8/20μs)
- 保护一条线路
- 低 ESD 钳位电压
- 工作电压：5.5V
- 反向泄漏电流小
- 固态硅雪崩技术
封装

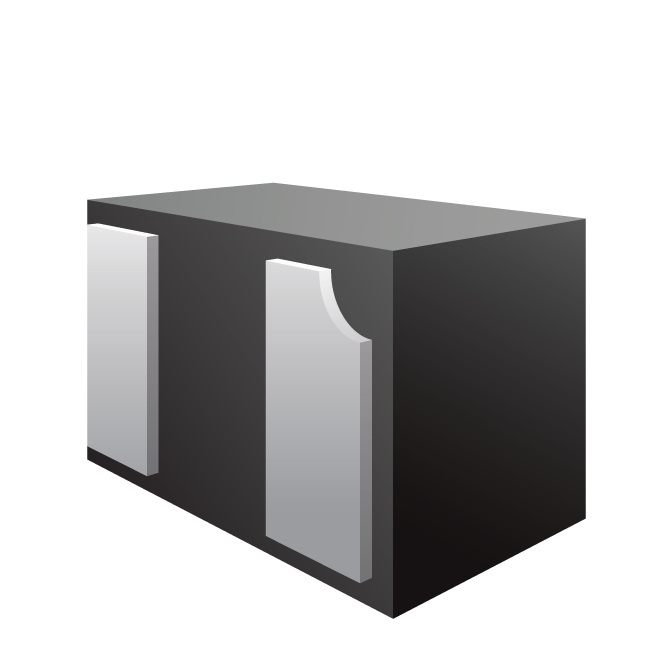

- DFN 1.0x0.6x0.50mm 2-Lead
订购代码
- uClamp5581P.F
-
Qty per Reel: 15,000
-
Reel Size: 7 Inch
PB Free/ROHS
Learn More →
| 文档 | Release Date | 键入 |  |
|---|---|---|---|
| uClamp5581P datasheet | 2025-06-23 | | |
应用
- 5.5V VBus Protection
- Tablets
- Personal Computers
- Instrumentation
- CCTV 摄像头
