uClamp5011ZA
μClamp® TVS 二极管可以保护灵敏电子器件免受 ESD 造成的损害或闩锁效应。它们专为替代便携式应用（例如手机、笔记本电脑和其他便携式电子产品）中的 0201 尺寸多层压敏电阻 (MLV) 而设计。它们的特点是具有较大截面积的结，可传导高瞬态电流。该器件拥有电路板保护的理想特性，包括快速响应时间、低工作电压和钳位电压，且器件性能不会劣化。
功能
- High ESD withstand voltage: +/-15kV (contact) and +/-18kV (air) per IEC 61000-4-2
- Ultra-small 0201 package
- Protects one data line
- 低 ESD 钳位电压
- Working voltage: 5V
- 低电容：最大 5pF
- 小漏电流
- 低动态电阻：0.15 欧姆（典型值）
- 固态硅雪崩技术
- 蜂窝手机和配件
- 外围设备
- 便携式仪表
- Notebook Computers
- Tablet PC
应用

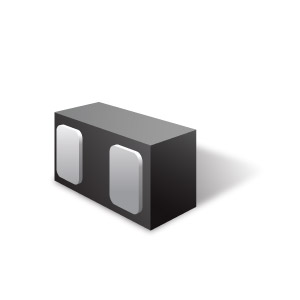

封装
- SLP0603P2X3F：0.6 x 0.3 x 0.25mm
订购代码
- µClamp5011ZATFT：无铅、无卤素且符合 RoHS/WEEE 标准，15,000 颗，纸质载带包装。
- µClamp5011ZATNT：无铅、无卤素且符合 RoHS/WEEE 标准，10,000 颗，塑料载带包装。
