uClamp3671P
μClamp® TVS 二极管可以保护灵敏电子器件免受 EOS、闪电、CDE 和 ESD 造成的损坏或闩锁效应。它们的特点是具有较大截面积的结，可传导高瞬态电流。这些器件具备电路板保护的理想特性，即响应时间快，工作电压和钳位电压低，且无器件退化。
功能
- VBus 和数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5（雷电）18A (8/20µs)
- 保护一条线路
- 低 ESD 钳位电压
- Working voltage: 36V
- 小漏电流
- 极低动态电阻：0.29 欧姆（典型值）
- 固态硅雪崩技术
- 蜂窝手机和配件
- VBUS 保护
- 电池保护
- 数字线路
- 工业传感
应用

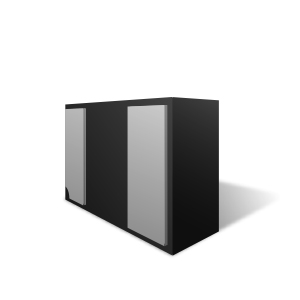

封装
- SGP1610N2：1.6 x 1.0 x 0.57mm
订购代码
- uClamp3671P.TNT
Pb(Lead)-Free/RoHS-Green Info
