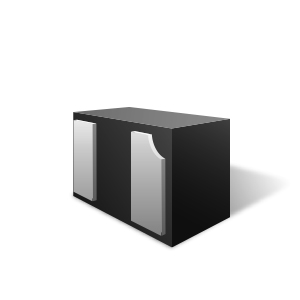

uClamp3603T
The uClamp3603T is a high-surge transient voltage suppressor (TVS) optimized for protection of sensitive digital sensors used in proximity switches and industrial control applications. The uClamp3603T protects the components from over-voltages caused by Electro-Static Discharge (ESD), Electrical Fast Transients (EFT), and Tertiary Lightning.
功能
- Transient protection for proximity sensors.
- IEC 61000-4-2 (ESD)
- IEC 61000-4-4 (EFT)
- Ultra-small package (1.7 x 1.0 x 0.4mm)
- Protects one three line sensor.
- 钳位电压低
- High operating voltage: 36V
- 固态硅雪崩技术
- AEC-Q100 Grade 1 Qualified
- Two and Three Wire DC High-Side and Low-Side
- Proximity Switches
- Digital Sensor Input Protection
- Industrial Controls
- 24V - 36V DC Supply Protection
- 汽车应用
应用
封装
- SLP1710N6T
订购代码
- uClamp3603T.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
