uClamp3601P

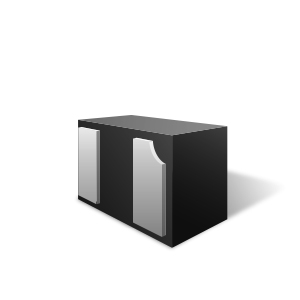

The μClamp3601P, part of the μClamp® series of products, is a high-surge transient voltage suppressor (TVS) optimized for protection of sensitive digital sensors used in proximity switches and industrial control applications.
功能
- Transient protection for data and power lines to
- IEC 61000-4-2 (ESD) ±20kV（空气），±15kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 2A (1.2/50μs)
- Ultra-small package
- Bidirectionally protects one data line
- 钳位电压低
- Working voltage: 33VLow leakage current
- 固态硅雪崩技术
- Qualified to AEC-Q100 Grade1
- Two, Three, and Four Wire DC High-Side Proximity Switches
- Digital Sensor Input Protection
- Industrial Controls
- 24V - 33V DC Supply Protection
- 汽车应用
应用
封装
- SLP1006P2
订购代码
- uClamp3601P.TNT
Pb(Lead)-Free/RoHS-Green Info
