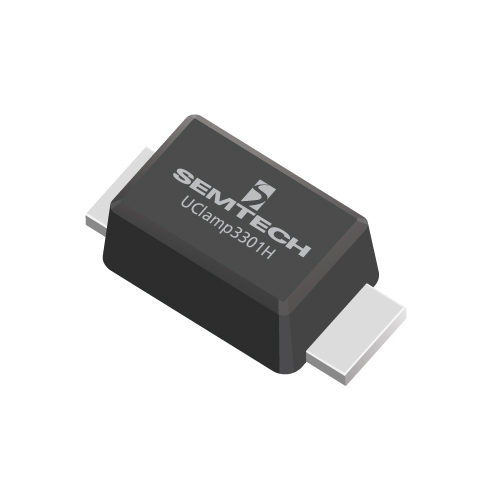

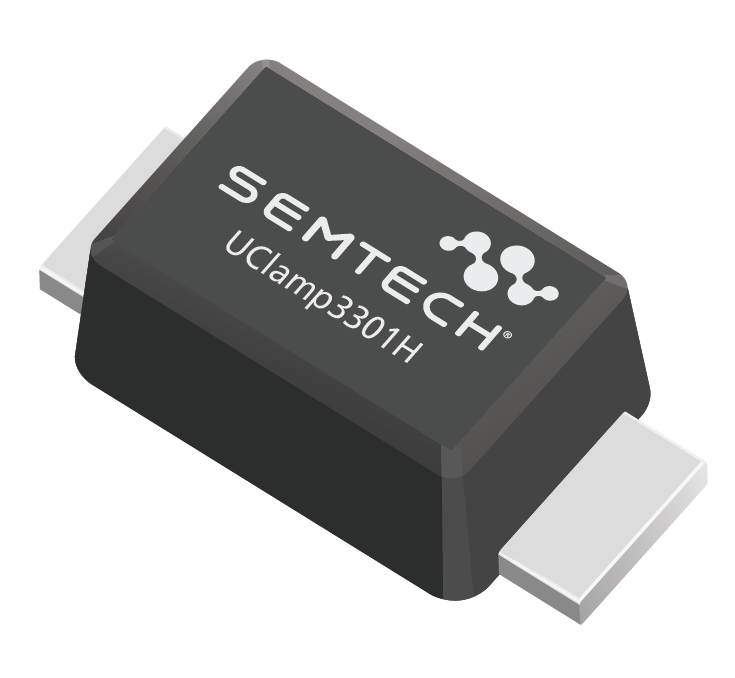

uClamp3301H
The μClamp series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ± 20kV (air), ± 10kV (contact)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)

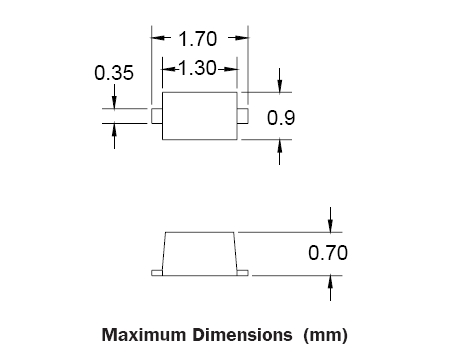

- Ultra-small SOD-523 package (1.7 x 0.9 x 0.7 mm)
- Protects one I/O
- 钳位电压低
- 工作电压：3.3V
- 小漏电流
- 固态硅雪崩技术
- Lead-Free, RoHS and WEEE Compliant
- Cellular handsets & accessories
- Cordless phones
- Personal digital assistants (PDAs)
- Notebooks & handhelds
- Portable instrumentation
- Digital cameras
- 外围设备
- MP3 players
应用

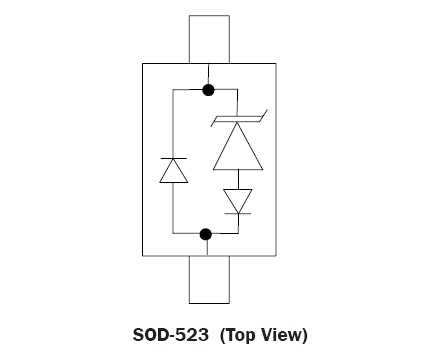

封装
- SOD-523
- Package Minimum Tape & Reel Only
订购代码
- UCLAMP3301H.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
