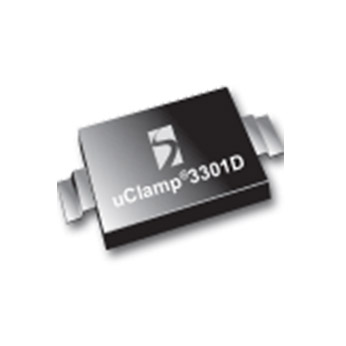

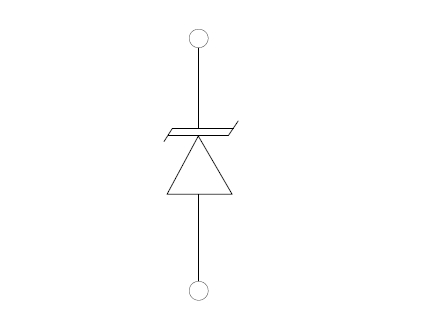

uClamp3301D
The µClamp® series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs.
功能
- 200 Watts peak pulse power (tp = 8/20 µs)
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8k V (contact)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (tp = 8/20 µs)
- Small package for use in portable electronics
- Suitable replacement for MLVs in ESD protection applications
- 保护一条线路
- 钳位电压低
- Working voltage: 3.3 V
- 小漏电流
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- Cell phone handsets and accessories
- Laser diode protection
- Personal digital assistants (PDAs)
- Notebooks, desktops, & servers
- Portable instrumentation
- Analog inputs
应用
封装

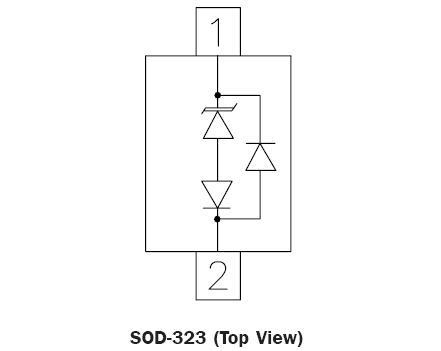

- SOD-323
- 3000 pcs. Tape & Reel
订购代码
- UCLAMP3301D.TCT
