uClamp2611ZA
The μClamp series of transient voltage suppressor (TVS) arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD). They feature large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation. μClamp2611ZA is in a DFN 0.60 x 0.30 x 0.25mm 2-Lead package. Each device will protect one line operating up to 26V. The combination of small size and high ESD surge capability makes them ideal for use in portable applications such as cellular phones, tablets and notebook computers.
功能
- Transient protection to:
- IEC 61000-4-2 (ESD): ±24kV (contact), ±30kV (air)
- IEC 61000-4-5 (lighting): 3A (8/20μS)
- Working voltage: 26V
- 保护一条 I/O 或电源线路
- 小漏电流
- 低 ESD 钳位电压
- 固态硅雪崩技术
- Cellular handsets and accessories
- 外围设备
- Notebooks and handhelds
应用
封装

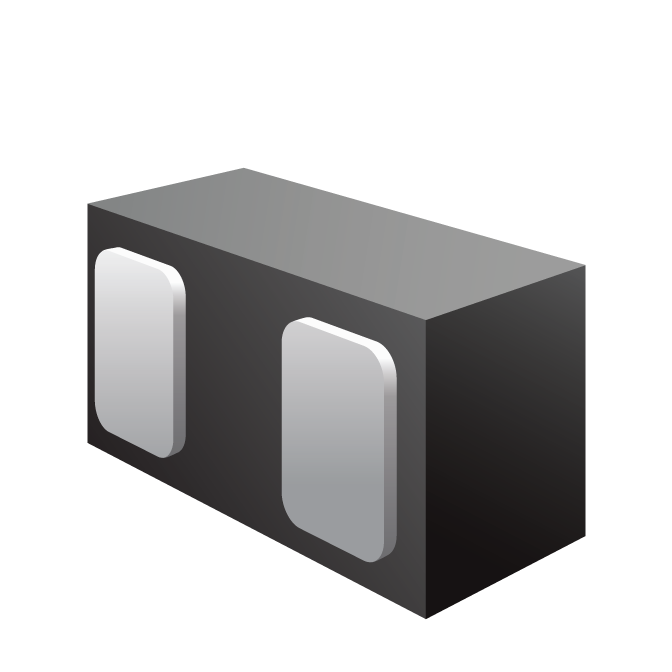

- DFN 0.6 x 0.3 x 0.25mm 2-Lead
订购代码
- μClamp2611ZA.F
