uClamp2101T
μClamp® series of transient voltage suppressor (TVS) arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. They feature large cross-sectional area junctions for conducting high transient currents. μClamp products offer desirable characteristics for board-level protection including fast response time, low operating and clamping voltage and no device degradation.
功能
- 高 ESD 耐受电压：符合 IEC 61000-4-2 标准，+/-20kV（接触）和 +/-30kV（空气）
- 保护一条 I/O 或电源线路
- 低 ESD 钳位电压
- Working voltage: +2.1 V
- 小漏电流
- 固态硅雪崩技术
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- Cellular handsets & accessories
- OLED displays
- Vbus
- Notebooks & handhelds
- Portable instrumentation
应用
封装

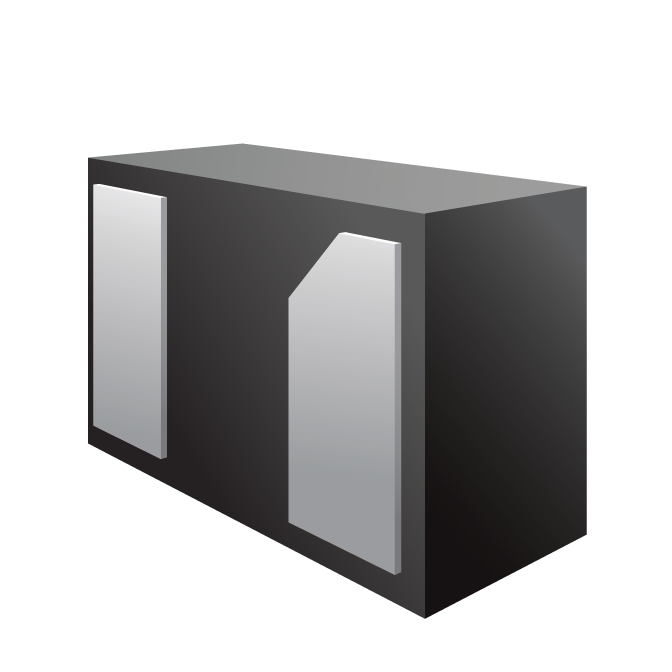

- DFN 1.0 x 0.60 x 0.40 mm 2-Lead – 10,000 pcs
订购代码
- uClamp2101T.TNT
