概览
The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics.
封装

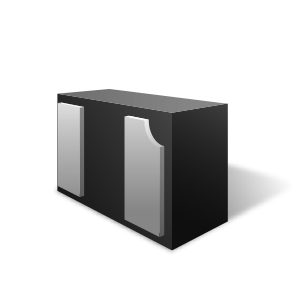

- SLP1006P2T
订购代码
- uClamp1211T.TCT: Lead-Free, WEEE and RoHS Compliant, 3000 pcs Tape and Reel only
PB Free/ROHS
Learn More →功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)

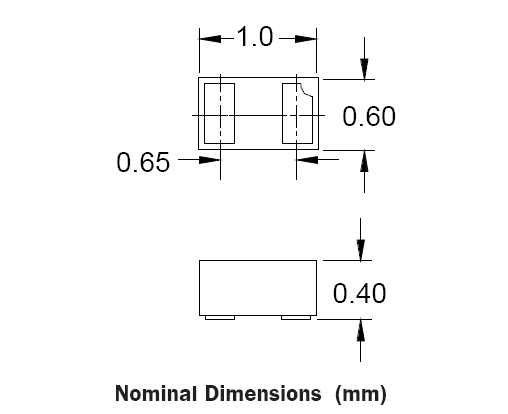

- Ultra-small package (1.0 x 0.6 x 0.4mm)

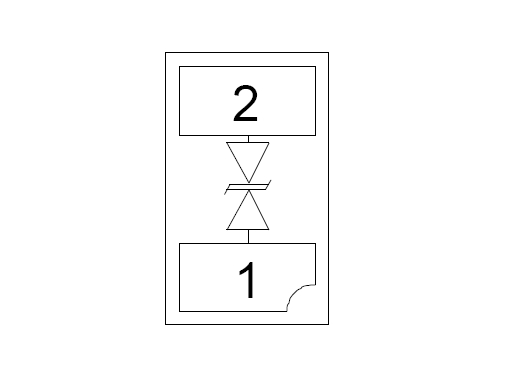

- Protects one data or power line
- Low reverse current: <1nA typical (VR=12V)
- Working voltage: - 12V / +12V
- Low capacitance: 3pF typical
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP1211T Datasheet | 2018-12-15 | | |
应用
- 蜂窝手机和配件
- FM Antennas
- RFID
- Keypads, Side Keys, LCD Displays
- Battery, Power Lines
- Notebooks & Desktop Computers
- 便携式仪表
