uClamp1211P
µClamp® 系列 TVS 阵列可以保护灵敏电子器件免受 ESD 造成的损害或闩锁效应。它们的特点是具有较大截面积的结，可传导高瞬态电流。它们具备电路板保护的理想特性，即响应时间快，工作电压和钳位电压低，且无器件退化。
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)

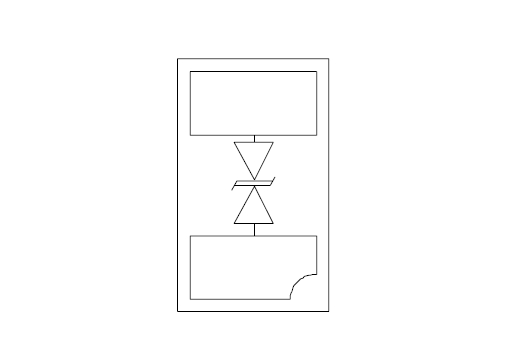

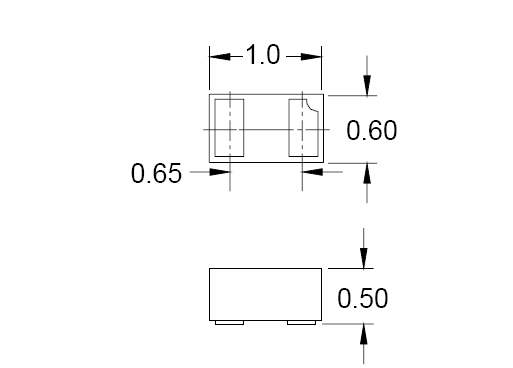

- 超小型封装 (1.0 x 0.6 x 0.5 mm)
- 保护一条 I/O 或电源线路
- 钳位电压低
- 工作电压：±12V
- 小漏电流
- 固态硅雪崩技术
- 蜂窝手机和配件
- Cordless Phones
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用

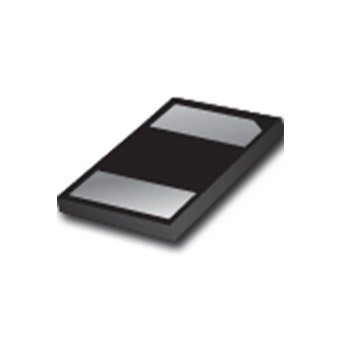

封装
- SLP1006P2
订购代码
- uClamp1211P.TCT：无铅，符合 RoHS 和 WEEE 标准，3000 颗/卷
