概览
The μClampTM series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs. It features large cross-sectional area junctions for conducting high transient currents. It offers superior electrical characteristics such as lower clamping voltage and no device degradation when compared to MLVs. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.

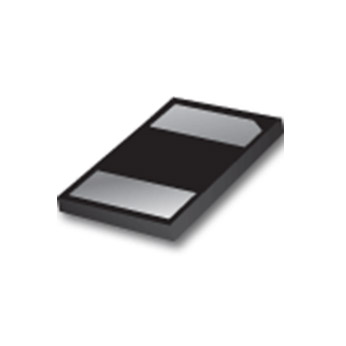

封装

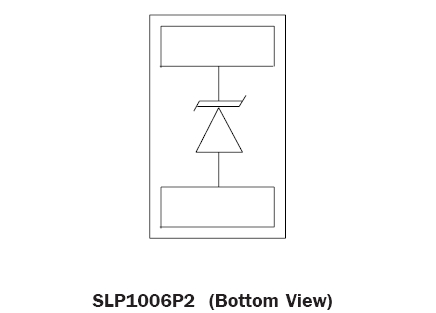

- SLP1006P2
订购代码
- uClamp1201P.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
PB Free/ROHS
Learn More →功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)

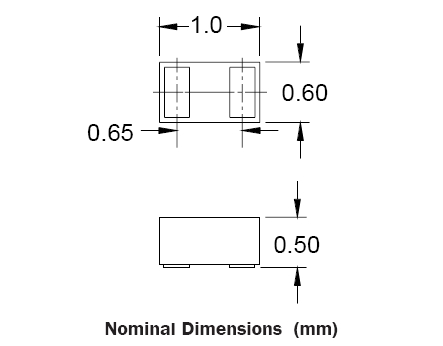

- 超小型封装 (1.0 x 0.6 x 0.5 mm)
- 保护一条 I/O 或电源线路
- 钳位电压低
- 工作电压：12V
- 小漏电流
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP1201P Datasheet | 2022-02-12 | | |
应用
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
