概览
The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics.
封装

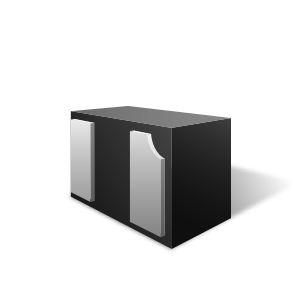

- SLP1006P2T
订购代码
- uClamp0801T.TCT - Lead-free, RoHS/WEEE compliant product
PB Free/ROHS
Learn More →功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data line
- 钳位电压低
- 工作电压：8V
- 小漏电流
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP0801T Datasheet | 2018-12-14 | | |
应用
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
