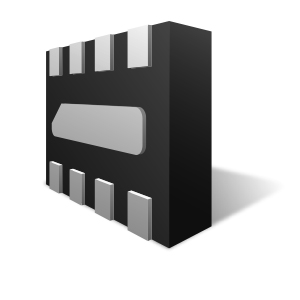

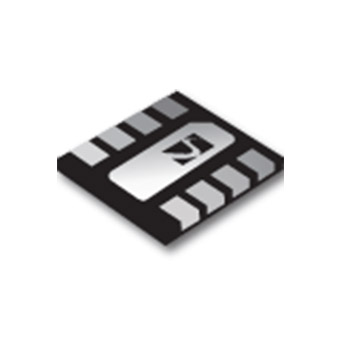

uClamp0524P
The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD, lightning, and other voltage-induced transient events. Each device will protect up to four lines operating at 5 volts.
功能
- 数据线路瞬变保护符合以下标准
- -IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- Small package for use in portable electronics

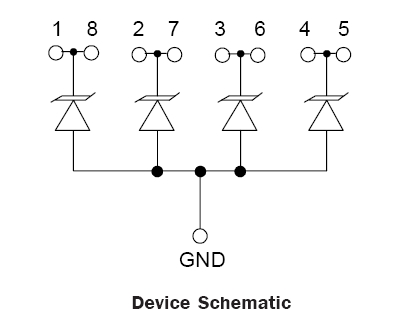

- Protects four I/O lines
- Working voltage: 5V
- Flow thru design for easy layout
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- Lead-Free, RoHS and WEEE Compliant
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用
封装

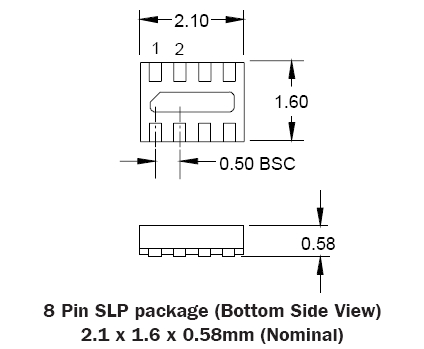

- SLP2116P8
- Package Minimum Tape & Reel Only
订购代码
- uClamp0524P.TCT
Pb(Lead)-Free/RoHS-Green Info
