uClamp0511T
The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data or power line
- Low reverse current: 3nA typical (VR=3.3V)
- Working voltage: - 5V / +5V
- Low capacitance: 4pF typical
- 固态硅雪崩技术
- 蜂窝手机和配件
- Keypads, Side Keys, USB 2.0, LCD Displays
- Notebooks & Desktop Computers
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用
封装

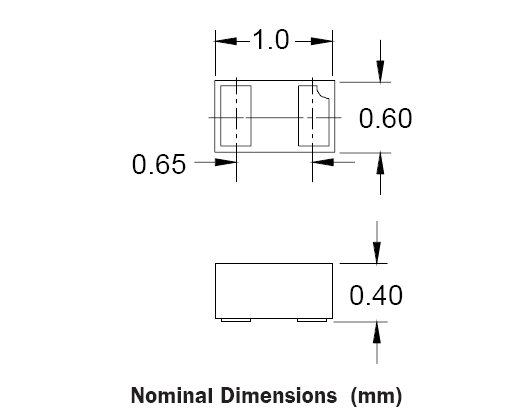

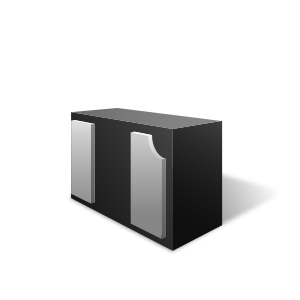

- SLP1006P2T
订购代码
- uClamp0511T.TCT: Lead-Free, WEEE and RoHS Compliant, 3000 pcs Tape and Reel only
Pb(Lead)-Free/RoHS-Green Info
