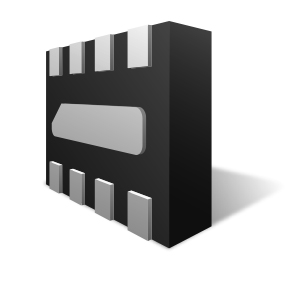

uClamp0508T
The μClampTM series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics. It features large cross-sectional area junctions for conducting high transient currents. TVS diodes offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small package
- Protects eight data lines
- 钳位电压低
- Working voltage: 5V
- Low capacitance (10pF)
- 固态硅雪崩技术
- 蜂窝手机和配件
- 笔记本电脑和手持设备
- Micro SD Ports
- MMC & HS-MMC Ports
- 便携式仪表
- 数码相机
- 外围设备
应用
封装

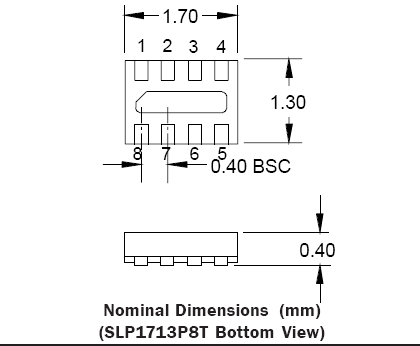

- SLP1713P8T
订购代码
- uClamp0508T.TCT: Lead Free, RoHS and WEEE Compliant, 3000 pcs, tape and reel
Pb(Lead)-Free/RoHS-Green Info
