uClamp0506P

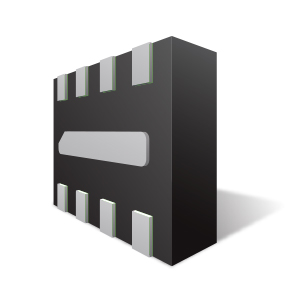

The μClampTM series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. Each device requires less than 2.6mm² of PCB area and will protect up to six lines.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)

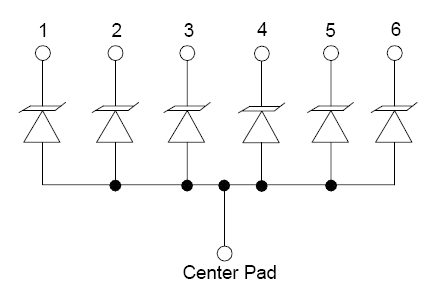

- Protects six I/O lines
- Ultra-small package (1.6 x 1.6 x 0.6mm) requires less than 2.6mm² of PCB area
- Working voltage: 5V
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- Cellular Handsets and Accessories
- Cordless Phones
- 个人数码助理 (PDA)
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用
封装

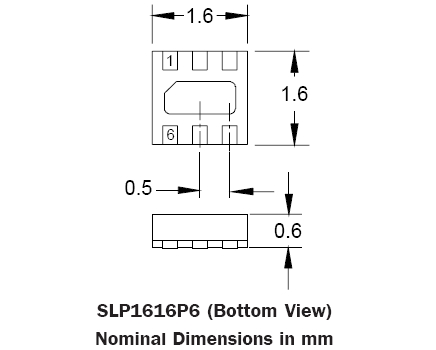

- SLP1616P6
订购代码
Pb(Lead)-Free/RoHS-Green Info
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
