uClamp0506A
The μClampTM series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. Each device requires less than 2.9mm2 of PCB area and will protect up to five lines. They are bidirectional devices and may be used on lines where the signal polarities swing above and below ground.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)

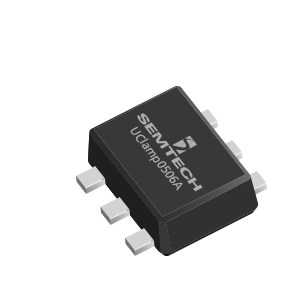

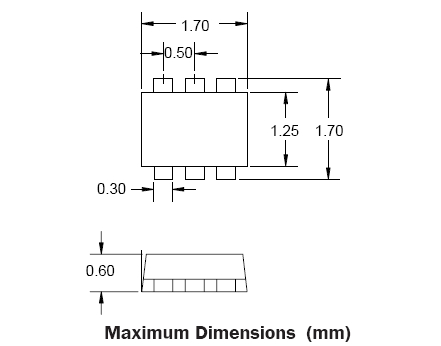

- Ultra-small SC-89 package (1.7 x 1.7 x 0.6mm) requires less than 2.9mm² of PCB area
- Working voltage: 5V
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- Cellular Handsets and Accessories
- Cordless Phones
- Notebooks and Handhelds
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用

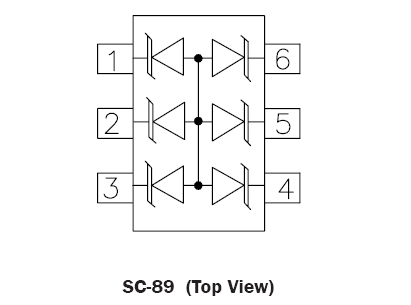

封装
- SC-89
订购代码
- uClamp0506A.TCT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
