概览
The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace single line devices such as multilayer varistors (MLVs) in space constrained applications such as cell phones, notebook computers, and other portable electronics.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV(空气),±8kV(接触)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small package
- Protects four data lines
- 钳位电压低
- Working voltage: 5V
- Low capacitance (10pF)
- 固态硅雪崩技术
封装

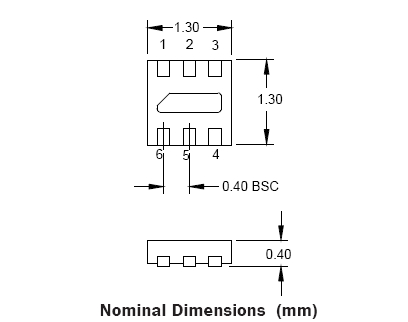

- SLP1313P6T
订购代码
- uClamp0504T.TCT: Lead free, RoHS/WEEE Compliant, 3000 pcs, Tape and Reel
PB Free/ROHS
Learn More →BUY NOW
产品编号
QTY
Unit Price (USD)
Price
$ 0
$ 0
Ordering functionality and fulfillment provided by Digi-Key Corporation. See terms here.
| 文档 | Release Date | 键入 | |
|---|---|---|---|
| UCLAMP0504T Datasheet | 2018-12-14 | ||
应用
Inventory
| Product | 国家/地区 | 经销商 | Qty | Buy |
|---|
