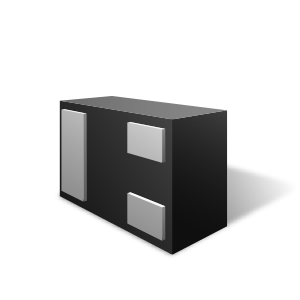

uClamp0502T
The µClamp™ series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multiplayer varistors (MLVs) in potable applications such as call phones, notebook computers, and other portable electronics. it features large cross-sectional area junctions for conducting high transient currents. they offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)

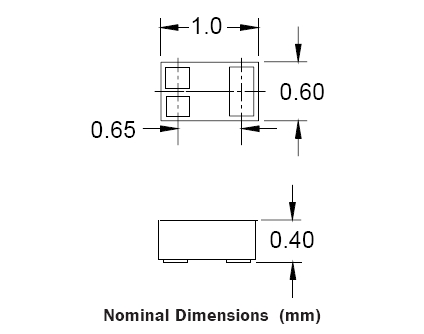

- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects two data lines
- 钳位电压低
- Working voltage: 5V
- 小漏电流
- 固态硅雪崩技术
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用
封装

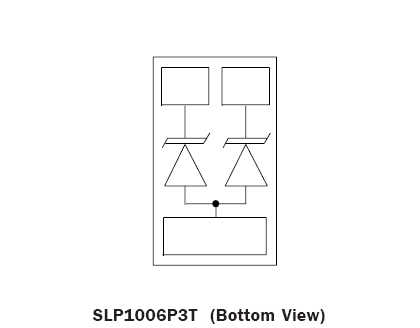

- SLP1006P3T
订购代码
- uClamp0502T.TCT: Lead Free, RoHS/WEEE Compliant, 3000 pcs, Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
