uClamp0502P
The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- 超小型封装 (1.0 x 0.6 x 0.5 mm)
- Protects two data lines
- 钳位电压低
- Working voltage: 5V
- 小漏电流
- 固态硅雪崩技术
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用
封装

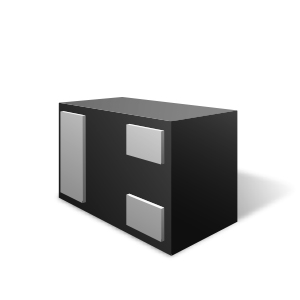

- SLP1006P3
订购代码
- uClamp0502P.TCT：无铅，符合 RoHS 和 WEEE 标准，3000 颗/卷
Pb(Lead)-Free/RoHS-Green Info
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
