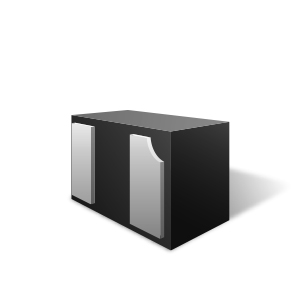

uClamp0501P
The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)

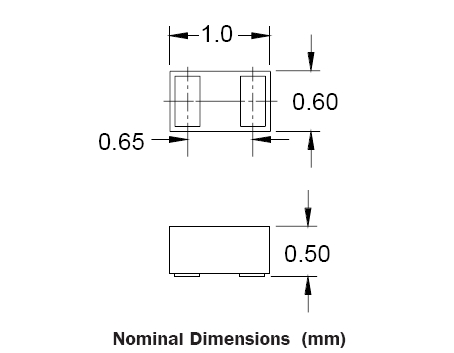

- 超小型封装 (1.0 x 0.6 x 0.5 mm)
- 保护一条 I/O 或电源线路
- 钳位电压低
- Working voltage: 5V
- 小漏电流
- 固态硅雪崩技术
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用
封装

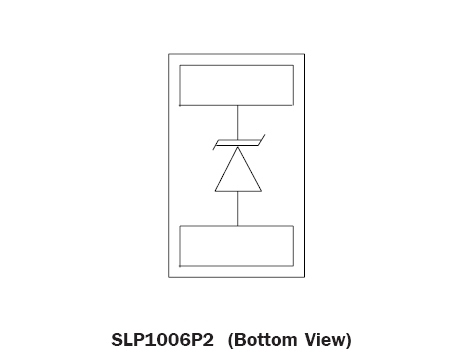

- SLP1006P2
订购代码
- uClamp0501P.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
