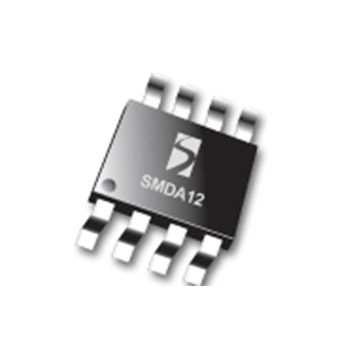

SMDA12
The SMDAxx series of TVS arrays are designed to provide undirectional protection for sensitive electronics from damage or latch-up due to ESD, lightning, and other voltage-induced transient events.
功能
- Working voltage: 12 V
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5（雷电）12 A (8/20 µs)
- Undirectional protection
- Small SO-8 package
- Protects four I/O lines
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- RS-232 data lines
- Microprocessor-based equipment
- Notebooks, desktops, and servers
- Instrumentation
- LAN/WAN equipment
- 外围设备
- Serial and parallel ports
应用
封装
- SO-8
订购代码
- SMDA12.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
