概览
RClamp01021ZC is an ultra-low capacitance “FemtoClamp®” ESD protection device specifically designed to protect high-speed differential lines. It offers desirable characteristics for board-level protection, including fast response time, low operating voltage, and low clamping voltage. RClamp01021ZC features extremely good ESD protection characteristics, highlighted by a low ESD clamping voltage and a high ESD withstand voltage per IEC 61000-4-2 (±10kV contact and ±15kV air). The RClamp01021ZC has a typical capacitance of 0.19pF, allowing it to be used on high speed lines such as USB 3.1 and Thunderbolt 3. Each device will protect one high-speed data line. RClamp01021ZC is in a 2-pin DFN 0.60 x 0.30 x 0.25mm package. The small package gives the designer the flexibility to protect single lines in applications where arrays are not practical.功能
- ESD withstand voltage: IEC 61000-4-2 (ESD): ±10kV (Contact), ±15kV (Air)
- Ultra-low capacitance: 0.19pF typical
- Very small PCB area
- Protects one high-speed data line
- 工作电压：1.0V
- Low reverse leakage current: 100nA max at VR=1.0V
- 固态硅雪崩技术
封装

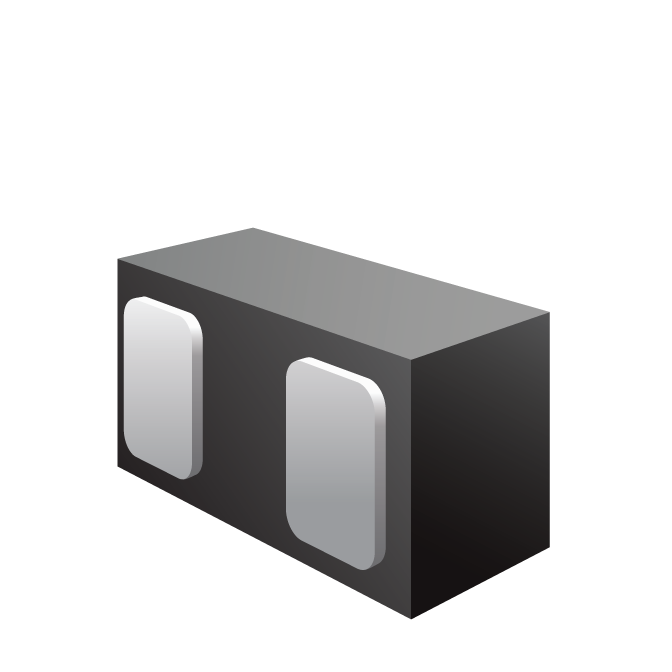

DFN 0.60 x 0.30 x 0.25 mm 2-Lead
订购代码
- RClamp01021ZC.N, 10,000(Qty per Reel), 7 Inch(Reel Size)
- RClamp01021ZC.F, 15,000(Qty per Reel), 7 Inch(Reel Size)
PB Free/ROHS
Learn More →
应用
- Thunderbolt 3
- USB Type-C
- USB 3.1 Gen 2
