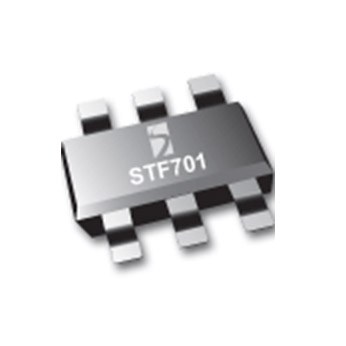

STF701
Obsolete - this device is no longer available. Datasheet is for information purposes only.
功能

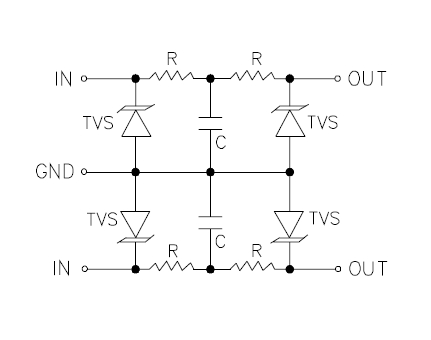

- Bidirectional EMI/RFI filtering with integrated ESD protection
- ESD protection to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)

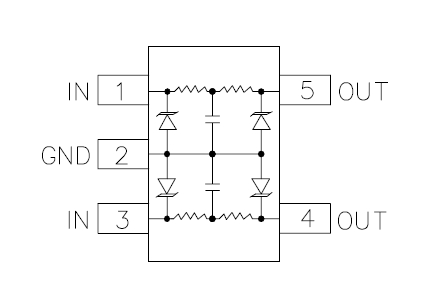

- Filtering and ESD protection for two data lines
- Low insertion loss to 10 MHz
- Good attenuation of high-frequency signals
- Low TVS operating voltage (5 V)
- 钳位电压低
- 小漏电流
- Thin-film-on-silicon technology
- Cell phone handsets
- Cell phone accessories
- RF Communications equipment
- Laptop computers
- Two-way pagers
- GPS devices
应用
封装
- SC-70 5L
订购代码
- STF701.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
